تفاصيل المنتج:
|
| الخصائص: | مقاومة للحرارة ، مثبطات اللهب ، مقاومة كيميائية | العرض: | 1.2 م |
|---|---|---|---|
| ماتريال: | مطاط السيليكون والألياف الزجاجية | الطول: | 50 متر |
| استخدام: | ستارة الدخان ، بطانية النار | معالجة السطح: | التقويم المطاطي السيليكون |
| درجة حرارة العمل: | -40 -200 | نوع النسج: | المنسوجة البسيطة ، المنسوجة |
| إبراز: | 2.5mm Silicone Fabric,Heavy Duty Silicone Fabric,50m Length Silicone Fabric,Heavy Duty Silicone Fabric,50m Length Silicone Fabric |
||

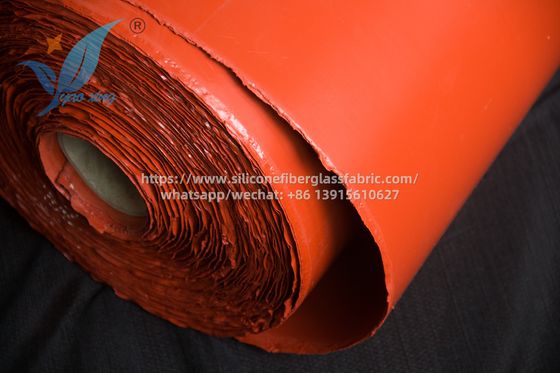

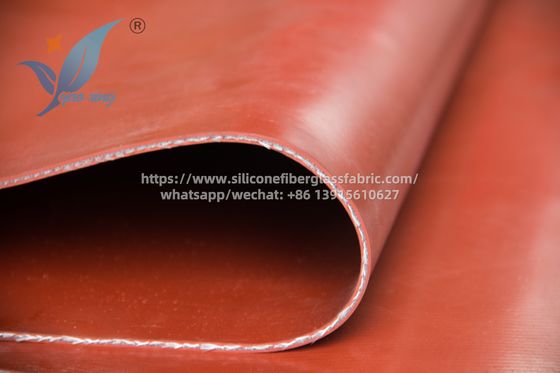

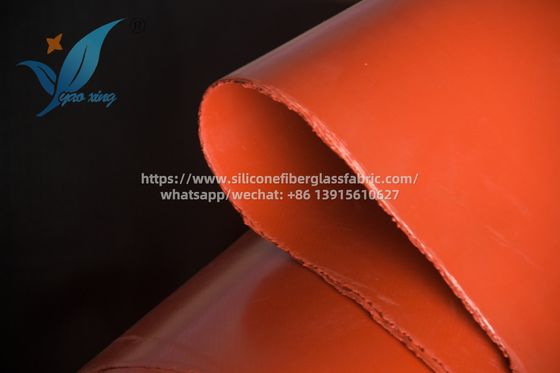

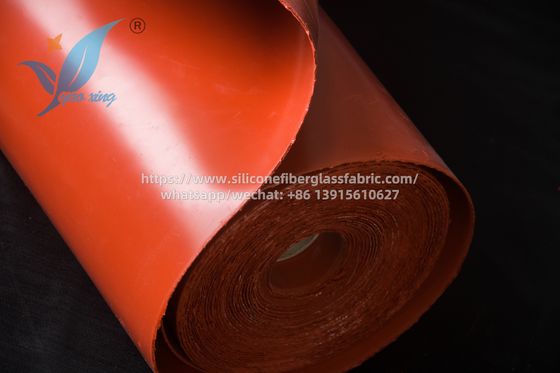

2.5mm Satin Weave Silicone Fabric Heavy Duty 200°C Resistant
Ⅰ.The properties of the silicone calender cloth are as follows
1. Heat resistant
2. High mechanical strength
3. Anti-ageing
4. Soft and easy to cut
5. High dielectric strength
Ⅱ.Specification with Silicone Coated Glass Fabric:
| Type | Silicone Coated Fiberglass Cloth |
| Thickness | 0.1 mm-3 mm |
| Width | 1 m, 1.2 m, 1.5 m |
| Roll length | 50m, 100m, 150m, 200m |
| Knitting type | Plain woven/ Twill woven |
| Glass Yarn Type | E-Glass/ C-Glass |
| Advantages | Good Insulation, Heat Resistance |
| Corrosion Resistance, High Mechanical Strength |
Ⅲ.Application
Due to the high dielectric strength and superior breakdown voltage of silicone calender fabric,this silicone fabric can be made into electric insulation mat,electric insulation cover and others,in order to resist the high voltage or offer insulation protection.
Ⅳ. Characteristics
1. Used in temperatures ranging from -40°C to 200°C.
2. Resistant to ozone, oxygen, sunlight and ageing. Long usage life of up to 10 years.
3. High insulating properties: dielectric constant 3-3.2; breaking down voltage: 20-50 KV/mm.
4. Good flexibility and high surface friction.
5. Chemical corrosion resistance
Cushion for pressure lamination
Silicone calender-coated fabric has an excellent smooth and soft surface. It can resist high temperatures and has high mechanical strength.
Compared to a PTFE liner or pillow, which are also used for heat press release, silicone fabric can be used in industry to withstand higher pressure due to the softness of silicone.
